Surface Non-Clog Pump

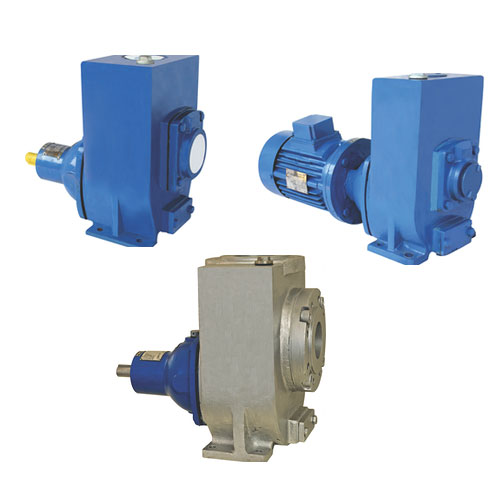

Surface Non-Clog Pump TSM Series

In past few decades industrial manufacturing sector has grown with a rapid pace leading to higher living standards. This has also led to major problem by form industrial effluent and household sewage. Vast quantities of waste water have damaged the eco system and polluted our water source to a great extent. Toshio Technology has been making every endeavor in developing the waste water treatment equipment. In addition to waste water pumps and sewage pumps, the company has developed submersible aerator for efficient treatment rate of waste water. These aerators have been widely used in domestic and overseas waste water treatment plants.

TSM series is self priming surface non-clog pump equipped with semi open impeller. Pumps are suitable for sewage or effluent transfer application.

These are single stage, single suction pumps with overhung non-clogging impeller. Pumps can be offered in stationary as well as transportable arrangements. The stationary arrangement is supplied with pump connector unit and the connector unit is connected to pump support bracket with rubber diaphragm to make it leak proof joint.

The TSM-series is a horizontal single-stage centrifugal pump designed for handling freshwater. Major pump components are made of 304 stainless steel, which make it lightweight and enable to protect the pumped liquid from contamination caused by rust. Screwed inlet and outlet ports provide convenient connections.

Application :-

Non-flammable and non-explosive liquid.

Rain water and common sewage

Municipal drainage project, construction sites

Effluent from light industry, paper mill, textile, food processing plant, chemical industry, electricity utility, mines etc.

Sewage treatment plant in the residential area.

Sewage and deposit of water purifying system

Tannery and slaughter house waste water transfer.

Fish breeding pond application.

Technical Data :-
Air Flow Range Upto 250 m3/hr
Max. Head Upto 48 m
Liquid Temp. 65' C
Frequency 50/60 Hz
Suction Head Upto 9 m
Solid size Upto 25mm
Discharge size 40 to 150 mm
Speed Upto 3000/1500 rpm (50 Hz)

TSM - HC / LC / H / L Series


Range: 2HP - 75HP
Features :-

Self - priming mono block pump.

Self-priming coupled pump (bare pump available)

Solid handling capacity up to 50 mm.

Can be coupled with diesel engines.

MOC options available such as i.e. CI, SS304, SS316, SS316L, SS904L etc.

Gland packing and mechanical seal options available

Reliable and easy to service.

Portable product.

Operating Data :-

M.O.C. Impeller :- C.I., C.S., SS 304 / 304L, SS316 / 316L, Bronze

Volatge/Phase :- from 180 to 240 volts for single phase from 380 to 440 volts for three phase

Mechanical Seal :- Double mechanical seal | Upper: Ceramic vs carbon | Lower: Silicon cardible | Gland packing also available
